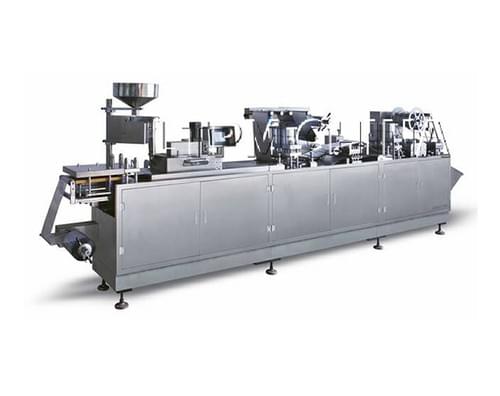

DPP-F Series Large-format Blister Packing Machine

Product Description

The machine is an improved type of equipment our company recently launched, adopt the integrated control technology for frequency control and machine, electricity, light, gas . And in strict accordance with the pharmaceutical industry (GMP)  standards for innovative design,the machine is in the leading level in the the domestic.

The advanced function, simple operation, high capacity of the machine are the most ideal packaging equipment of large and medium-sized pharmaceutical companies, health care products and food industry in electronic packaging.

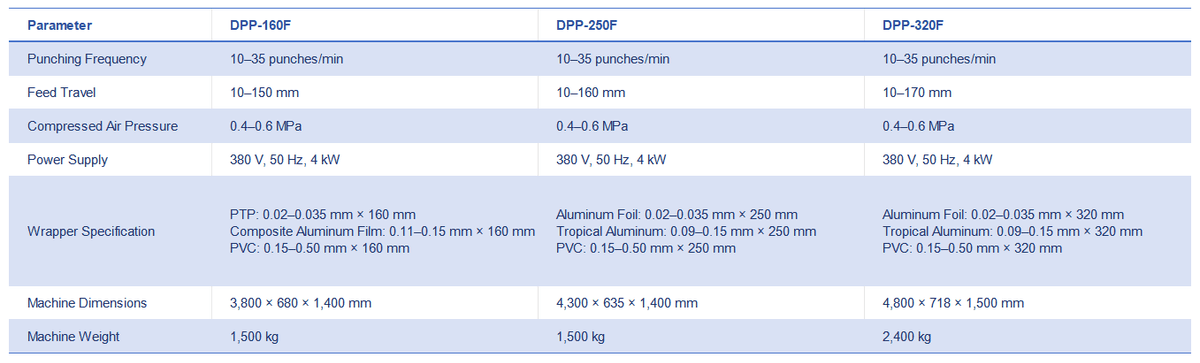

Main Technical Data:

Feature:

• Travel scope can be adjusted.

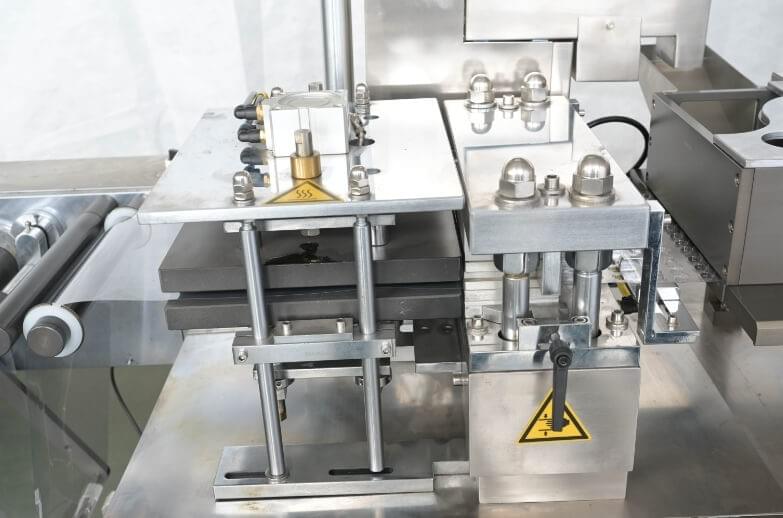

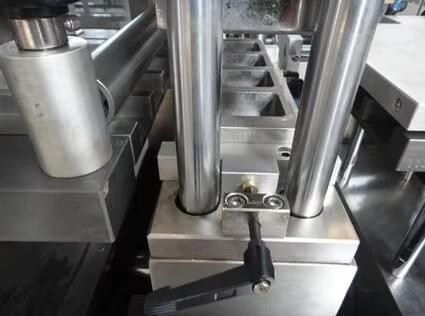

• Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
• The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
• Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
• Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
• Servo motor drive wheel to grip and tow wrapper, synchronize accurately. And it will be not waste of time and material for adjusting when restart the machine.
• The machine equipped Camera Cell for sensor, make the length in an accurate number.
• The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
