DPP-260Pro Multi-material Blister Packing Machine

Product Description

The machine is an improved type of equipment our company recently launched, adopt the integrated control technology for frequency control and machine, electricity, light, gas . And in strict accordance with the pharmaceutical industry (GMP)  standards for innovative design,the machine is in the leading level in the the domestic.

The advanced function, simple operation, high capacity of the machine are the most ideal packaging equipment of large and medium-sized pharmaceutical companies, health care products and food industry in electronic packaging.

Main Technical Data:

Feature:

• Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, and it equipped with a staff gauge, easy to adjust and can be performed quickly and accurately.
• Manipulator towing adopted culms double pendulum device and increased traction adjustable range (it can get to as long as 180mm), whichcan fit for blister packing of different sizes. All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately.

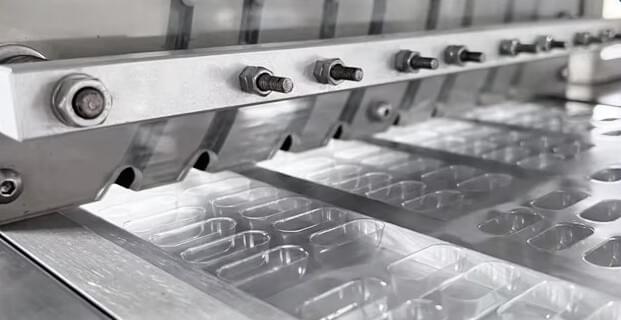

• Positive pressure forming matched with mechanical punch ensures well blister forming, and can be collocate with special automatic feeder to fit for certain packing such as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes.
• Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise orientation, easy to change moulds and material saving.
• Detachable design makes the machine easy to be carried and installed according to user’s requirement.
