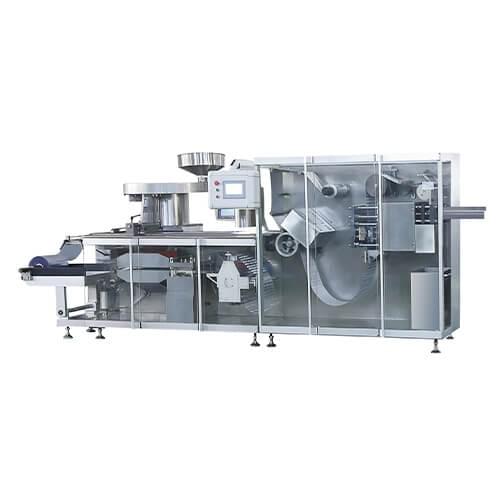

DPH Series High Speed Blister Packing Machine

Product Description

The DPH series intelligent high-speed roller plate blister packaging machine adopts frequency conversion speed regulation and integrated automatic control technology  of machinery, electricity, light, and gas, and is innovatively designed in strict accordance with GMP standards.

This machine can cut up to 200 times /min, which is about four times higher than a regular blister packaging machine.

It has the characteristics of high punching frequency, low energy consumption, accurate and stable action, convenient mold replacement, high yield, and has the characteristics of staggered punching and cutting, greatly improving production efficiency.

Main Technical Data:

Feature:

• High speed, high stability and high accuracy when machine running.

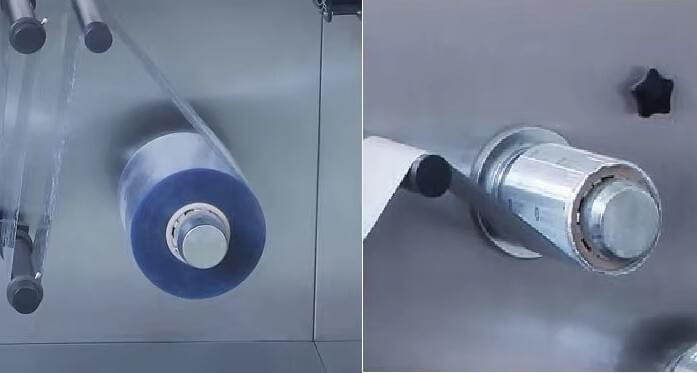

• Width of PVC and PTP both are 260mm, which designing is more humanized.

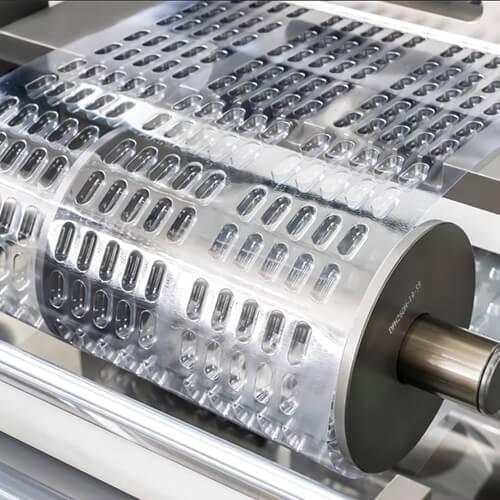

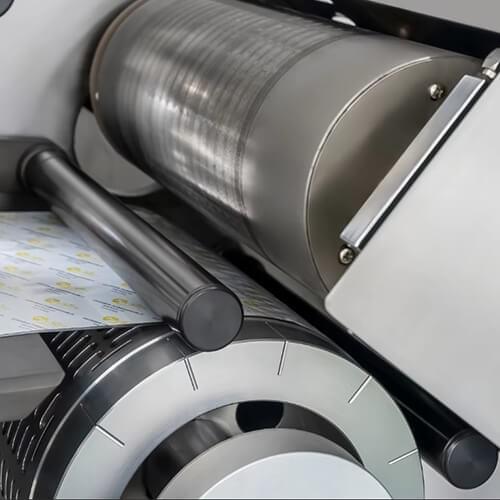

• Flat plate is front pressure to form, roller plate type to seal, thus making the grid pattern more beautiful.
• The cutting frequency is up to 40-200 blister plates /minute (the speed is adjustable according to the format length).
• It can be equipped with universal feeding system or special pipeline feeding system according to the shape of medicines.
• PLC human-machine interface control system to operate, stepless frequency inverter to main transmission. Each station adopts an independent worm gear reducer and link universal coupling device.
• Printing batch numbers and expiry date, and plate impressing adopts plate drawing type handy replacement structure.

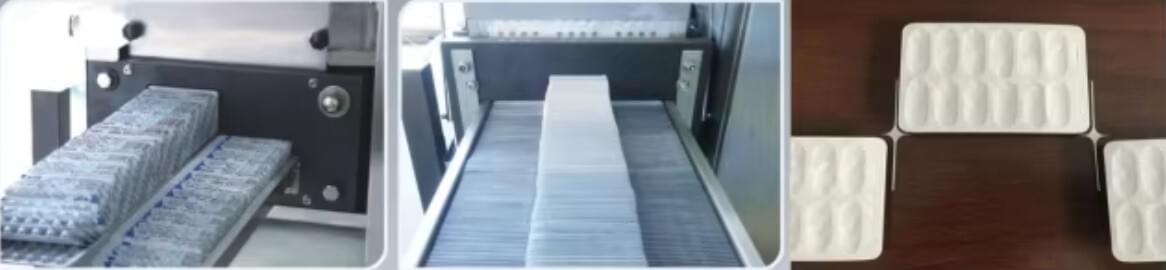

• Lengthen filling platform which can improve yield and easy to be equipped with camera detection, automatic eliminate convey system, and conveyor link to automatic carton packing machine.
• Cross cutting (borderless cutting) will not waste packing materials. This blister machine can save packing materials about 10%.
• Adopting servo traction system, make stroke length be adjustable arbitrary, accurate and consistent. The cutting position is easy to adjust which make plate perfect.
