Softgel capsules are widely used in pharmaceutical, nutraceutical, and health supplement industries because they are easy to swallow and can effectively protect sensitive ingredients such as oils or liquid vitamins. However, one common problem many manufacturers encounter during production is softgel leakage, which can cause product loss, quality issues, and even batch rejection.
Leakage in softgel capsules usually occurs due to improper gelatin formulation, incorrect machine parameter settings, or poor sealing during the encapsulation process. By optimizing the gelatin ribbon quality, controlling encapsulation pressure, and adjusting drying conditions, manufacturers can significantly reduce leakage problems.

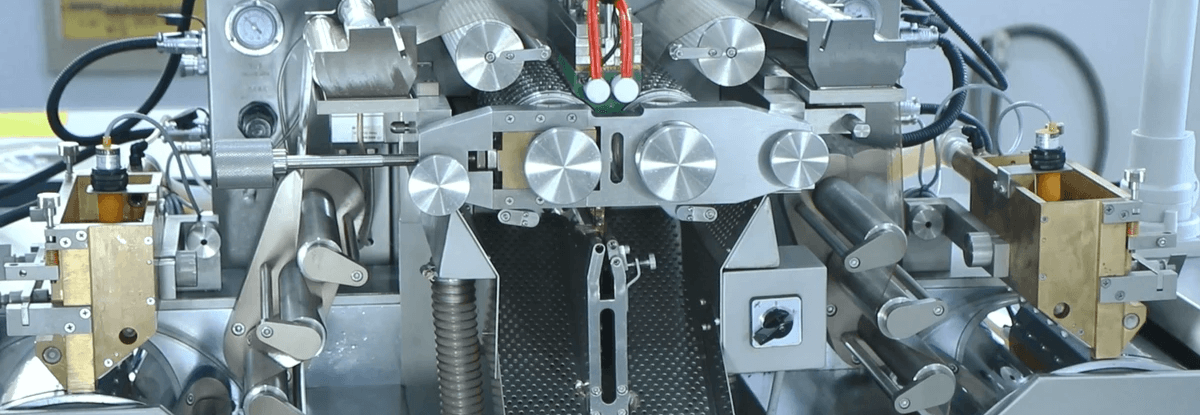

A softgel encapsulation machine works by forming two gelatin ribbons and injecting liquid fill material between them. The ribbons are sealed and cut simultaneously using a rotary die system. If the sealing area is not properly formed, the capsule may leak during drying or storage.
One important factor affecting sealing quality is gelatin ribbon thickness. If the ribbon is too thin, it may tear or fail to seal completely. On the other hand, ribbons that are too thick may create irregular capsule shapes. Most manufacturers control ribbon thickness between 0.6 mm and 1.0 mm, depending on capsule size and formulation.
Another common cause of leakage is incorrect fill material viscosity. If the liquid inside the capsule is too thin, it may penetrate the gelatin seam before the capsule is fully sealed. Adjusting the formulation or adding stabilizing agents can help maintain proper viscosity.
Machine injection timing and pressure also play a critical role. If the filling pump injects material too early or with excessive pressure, the liquid may push into the sealing area, preventing proper bonding of the gelatin ribbons. Modern softgel machines use servo-controlled injection systems to improve timing accuracy.

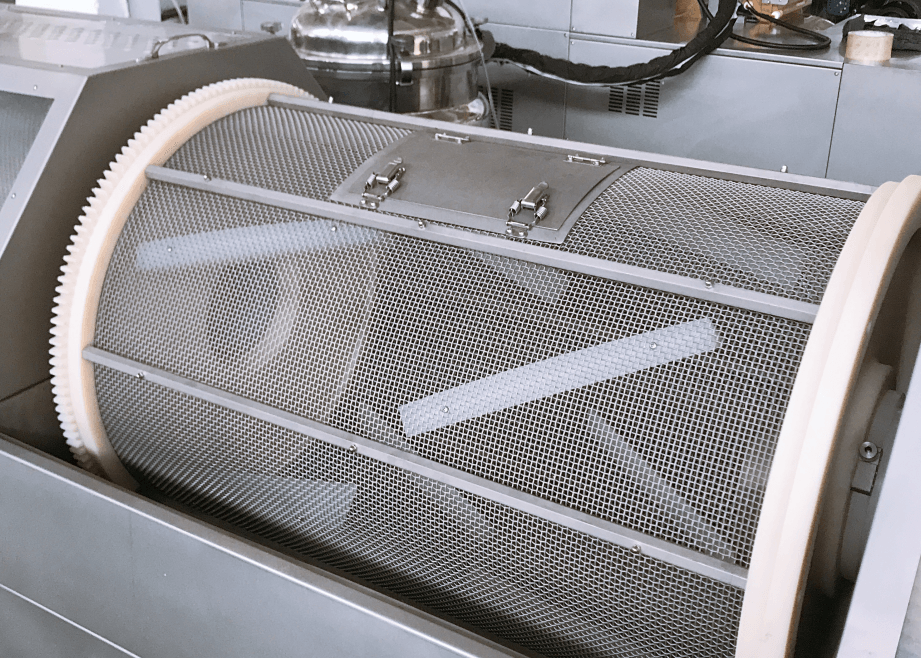

The drying process is another stage where leakage may occur. Softgel capsules must be dried gradually in tumble dryers and drying tunnels. If drying is too fast, the outer shell may harden while the inside remains soft, causing deformation or leakage.
Proper machine maintenance also helps reduce leakage problems. Rotary dies, wedge temperature control systems, and gelatin pumps should be inspected regularly to maintain consistent production performance.
By carefully managing these factors, manufacturers can significantly reduce leakage rates and improve overall softgel product quality.
Softgel production is a complex process that combines formulation, mechanical precision, and environmental control. Understanding the key factors that affect capsule sealing helps manufacturers maintain stable production and avoid costly product losses.
Related Questions
1. What type of materials are commonly filled into softgel capsules?
Softgel capsules are commonly filled with oils, vitamins, herbal extracts, fish oil, CBD oil, and other liquid or semi-liquid formulations. These materials must have suitable viscosity and stability for encapsulation.
2. What is the typical production capacity of a softgel encapsulation machine?
Depending on the machine model, production capacity can range from 20,000 to over 200,000 capsules per hour, making them suitable for both medium and large-scale manufacturing.
3. How can manufacturers maintain stable gelatin ribbon quality?
Maintaining proper gelatin temperature, moisture content, and mixing conditions ensures consistent ribbon thickness and elasticity during encapsulation.
4. Why is temperature control important in softgel encapsulation machines?
Temperature affects gelatin viscosity and sealing quality. The wedge heating system must maintain stable temperatures to ensure strong capsule seams.
5. Can softgel encapsulation machines handle different capsule sizes?
Yes. By changing the rotary die set and adjusting machine parameters, manufacturers can produce capsules of different shapes and sizes.
In summary, leakage in softgel capsules can be minimized by controlling gelatin formulation, machine parameters, filling viscosity, and drying conditions. A well-designed softgel encapsulation machine with precise control systems helps manufacturers maintain stable and efficient production.
