Comprehensive Classification and Control Measures of Solid Dosage Workshop Material Transfer Methods (Based on cGMP Guidelines)

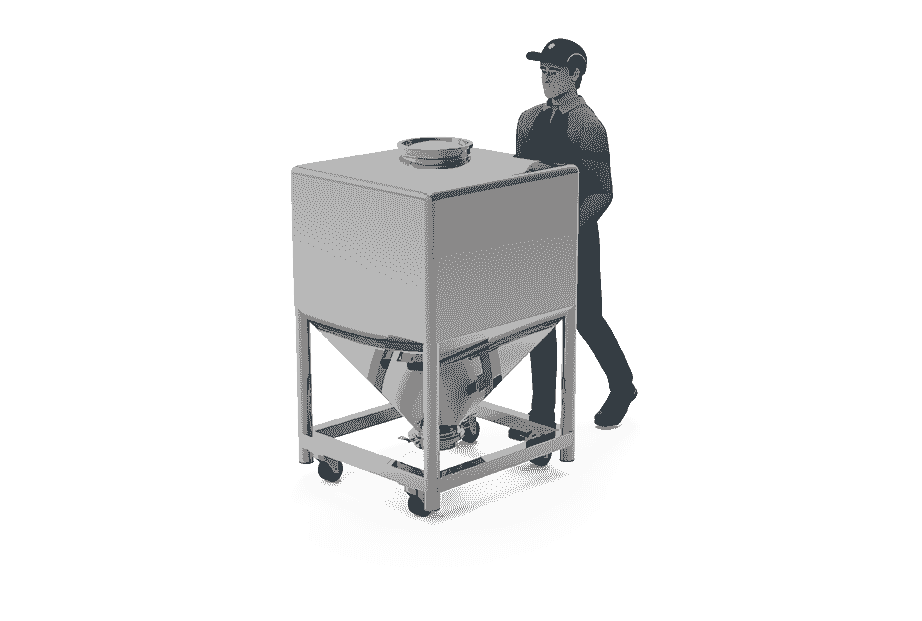

1. Manual Handling
Application Scenario: Suitable for short-distance, small-batch material transfers such as from warehouse to weighing room or weighing room to granulation area.
Operation Details: Uses stainless steel containers, material bags, or trolleys for transfer.
Risk Control Measures: Manual handling must be supported by local exhaust ventilation or laminar flow cabinets. Operators must wear proper PPE including respirators and gloves. Material labels and batch cards must be properly bound. Airborne particulate levels should be monitored regularly. Detailed SOPs and batch records must be maintained according to §211.42 (environmental control) and §211.67 (equipment cleaning procedures) of the FDA’s cGMP guidelines.

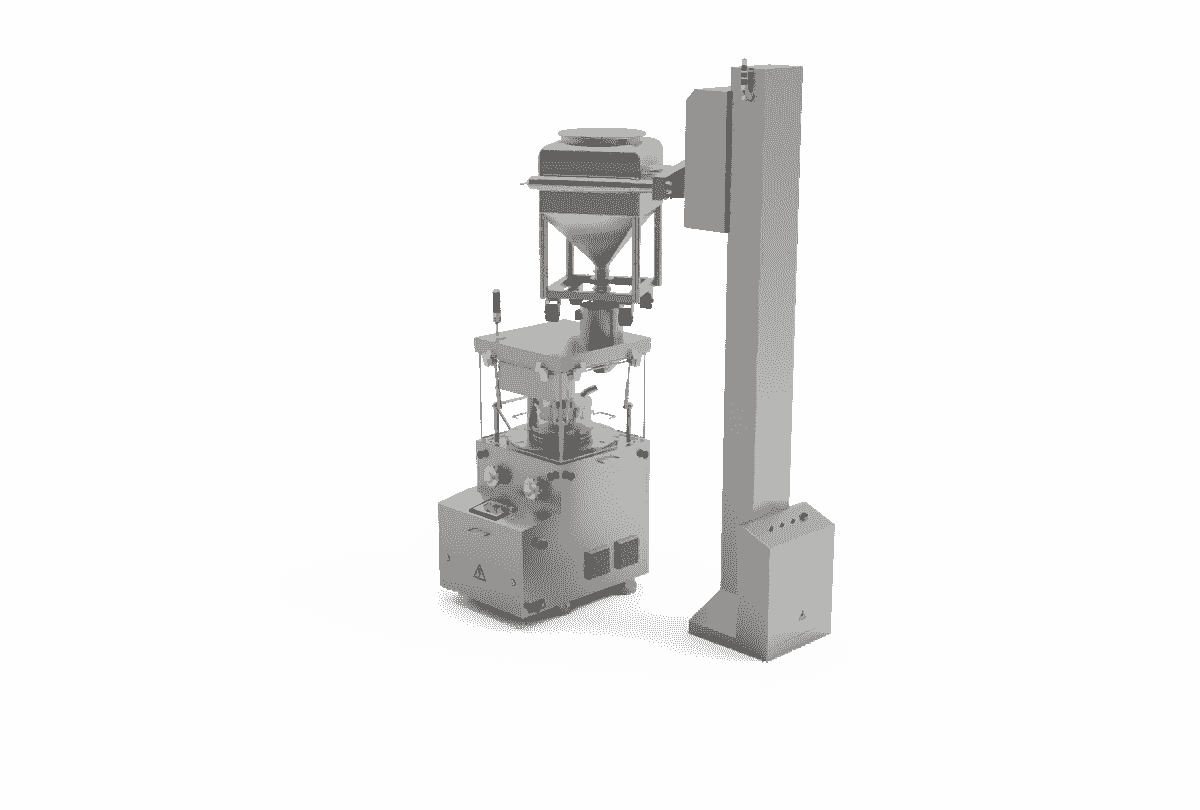

Application Scenario:
Commonly used for transferring intermediates or granules between equipment.
Equipment Configuration: Typically uses sealed stainless-steel containers or IBCs equipped with clamp-seal lids. May be integrated with split butterfly valves and CIP or WIP systems. Designs should include pressure differentials at interfaces to prevent backflow.
GMP Control Measures: Containers must be validated for cleaning with documented residual analysis. Interfaces between container and receiving equipment must be tested for sealing integrity. Product batch numbers, weight, and container ID should be electronically linked to the production batch.

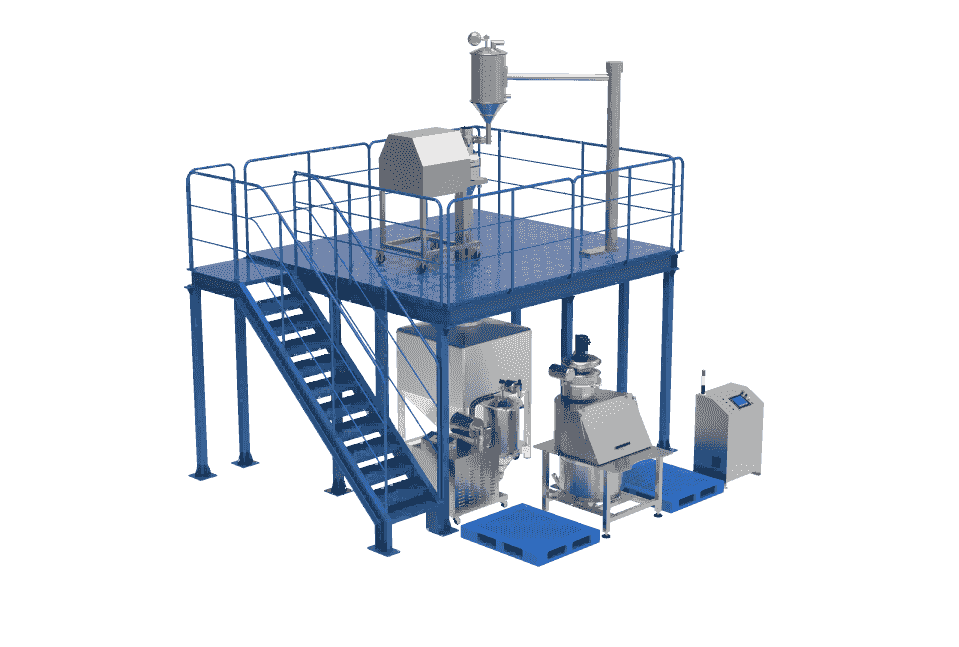

3. Pneumatic / Vacuum Transfer Systems
Application Scenario:
Automatic transfer of powder materials such as APIs or excipients between weighing, granulation, drying, and milling units.
System Components: Includes closed tubing, cyclone separators, receiving vessels, HEPA filters, vacuum or compressed air pumps, and cleaning ports. Must include anti-static protection for sensitive materials.
Key Verification Points: Cleaning validation includes worst-case residual testing for different material types. Transport efficiency must be validated (material delivered vs. material loaded). Alarm systems must be in place for blockages. CIP/SIP systems must be validated and integrated into batch records under ALCOA+ principles.
4. AGV / Conveyor Belt Systems
Application Scenario: Us
ed in large-scale, continuous production lines for material transfer between equipment such as from wet granulation to tablet compression.
System Design: Uses automated guided vehicles (AGV), rail-guided carts, or conveyor systems with RFID/MES integration for batch tracking. Barcode or QR code readers are installed for automatic identification and system linkage.
Verification Requirements: Includes validation of transport routes and timing to ensure batch integrity. All material flow records should be integrated with MES. The system must comply with ALCOA+ data integrity principles and all actions must be auditable. Changes to the system must follow proper CSV procedures.
5. Material Transfer Station (MTS)
Application Scenario: Des
igned for inter-zonal material transfer across cleanroom grades (e.g., from Grade D to C/B/A) or between production departments.
System Features: Includes vertical or horizontal laminar flow cabins, air showers, pressure differential monitoring, HEPA filters, and optional interfaces for sampling and weighing.
Operational and Verification Controls: Mus
t include validated pressure differential monitoring with real-time alarms. Air cleanliness inside the transfer station must be verified regularly, including HEPA integrity testing. All internal surfaces should be included in cleaning protocols. Access logs and batch traceability should be synchronized with QMS systems. Full design and operational qualification documentation (DQ/IQ/OQ/PQ) is required.
Transport Method Comparison and Selection Recommendations
Manual handling is best suited for transferring low-risk materials over short distances in small quantities. Its major advantage lies in its low cost and flexibility. However, it poses significant risks for cross-contamination and powder exposure, and it is difficult to track batches effectively. Therefore, strict control measures such as environmental monitoring, operator training, labeling control, and SOP compliance are essential.
Closed container transfer using IBCs is appropriate for transferring intermediates or bulk granules between equipment. Its advantages include effective powder containment, good batch traceability, and compatibility with cleaning validation protocols. On the downside, IBC systems require higher capital investment and proper sealing interfaces. The system must pass sealing integrity tests, batch number synchronization, and cleaning validation.
Automated conveyor or AGV systems are suitable for large-scale, high-frequency material transfers across continuous production lines. Their advantages include automation, error reduction, full integration with MES/QMS systems, and improved traceability. However, they involve high initial costs, complex layout planning, and extended commissioning time. Validation must include computer system validation (CSV), route/time confirmation, and electronic batch record integration.
Material Transfer Stations (MTS) are ideal for high-risk transfers across cleanroom grades or departments. They offer the highest level of containment and isolation, reducing cross-contamination risks. MTS units support sampling, weighing, and material transfers under controlled conditions. However, they require significant space, infrastructure, and operator training. Validation includes air shower performance, pressure differentials, HEPA efficiency, access control, and SOP integration.
Selection Decision Flow
- Material Risk Assessment: For highly potent APIs or sensitizing materials, sealed systems like IBCs combined with pneumatic transfer or MTS are preferred. For general excipients or intermediates, IBCs or pneumatic systems are often sufficient.
- Cleanroom Grade: For transfers between different cleanroom grades (e.g., C to B or A), MTS or closed systems are mandatory. For transfers within the same cleanroom grade, IBC or pneumatic systems can be used.
- Batch Size and Frequency: High-frequency, large-batch operations benefit from pneumatic or AGV systems. Low-frequency, small-batch transfers can be handled with IBCs or manual systems.
- Budget and ROI: Facilities with limited budgets may start with IBCs and strong SOP control. For long-term automation strategies, investment in conveyor or pneumatic systems is recommended.
- Workshop Layout Compatibility: If pipelines are already installed, pneumatic systems can be integrated. If digital batch tracking or MES is a requirement, AGV or conveyor systems are ideal.
- Verification and Integration Needs: For full integration with MES/QMS and CSV compliance, AGV systems are prioritized. If basic batch management suffices, IBC or pneumatic transfer is sufficient.
Validation and Quality Control Lifecycle Requirements
- All systems must undergo full DQ/IQ/OQ/PQ qualification with documented risk assessment (QRM).
- Cleaning validation must include worst-case scenarios and residual testing.
- Transport systems should record key parameters such as speed, pressure, duration, and batch numbers with alarms and event logs.
- Operator training must include handling, cleaning, and deviation reporting.
- All data must follow ALCOA+ principles.
- System changes must be documented in a change control record, including updates to SOPs and transfer protocols.
Summary and Recommendations
To design a material transfer system that complies with cGMP while optimizing safety and efficiency, you must assess:
- Material characteristics and risk levels;
- Cleanroom zoning and environmental requirements;
- Batch sizes and transfer frequency;
- Existing facility infrastructure;
- Information management and traceability requirements.
